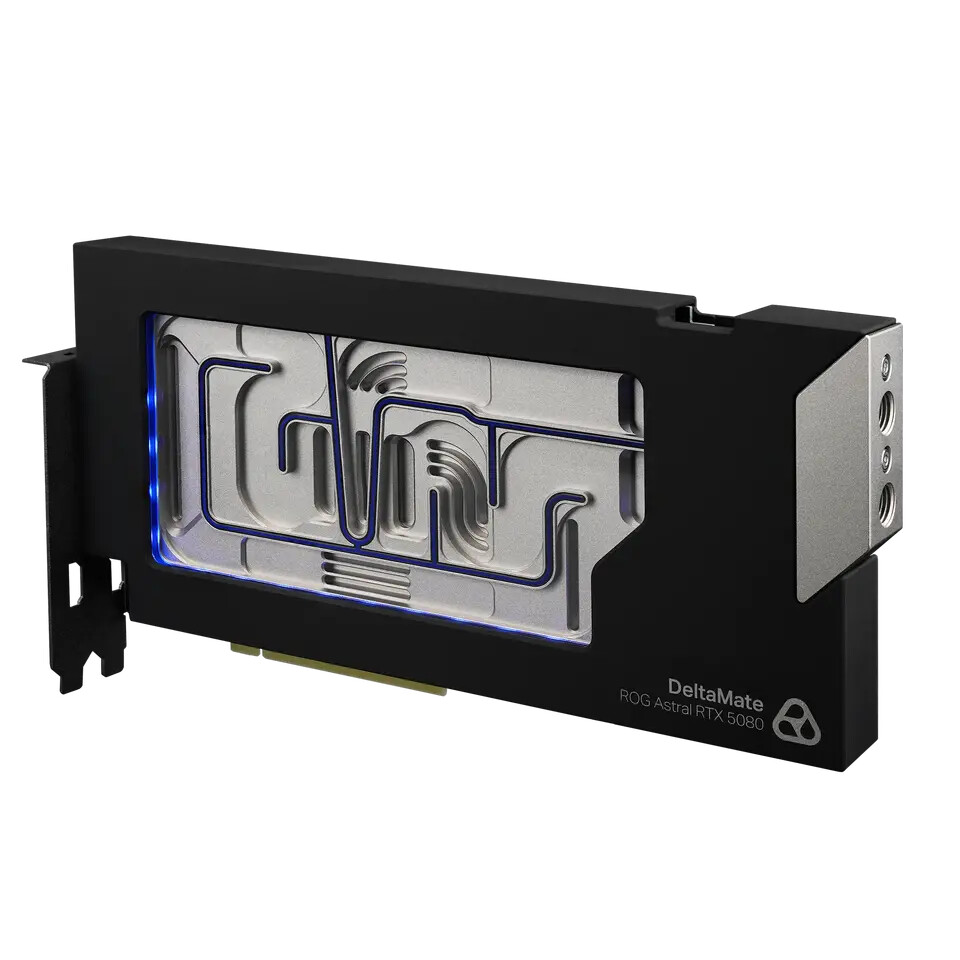

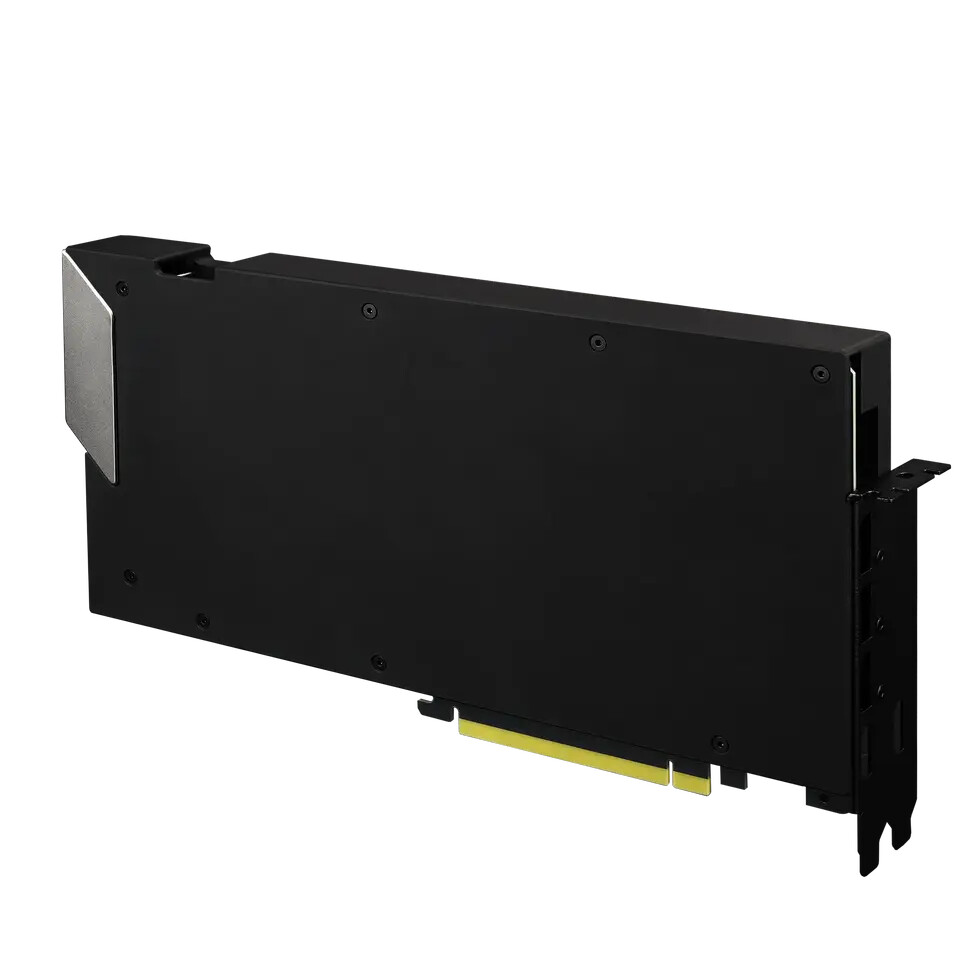

Introducing the DeltaMate GPU Block Astral – ROG 5080: Advanced Cooling with Schott BOROFLOAT Glass
Thermal Grizzly has unveiled the DeltaMate GPU Block Astral – ROG 5080, a high-performance GPU water block designed for enthusiasts seeking both exceptional cooling and striking aesthetics. This latest addition to the DeltaMate series features a unique viewing window crafted from Schott BOROFLOAT borosilicate glass, setting it apart from conventional acrylic designs.
Innovative Borosilicate Glass Viewing Window
The use of Schott BOROFLOAT glass in the DeltaMate GPU Block Astral – ROG 5080 offers several advantages. Unlike acrylic, borosilicate glass refracts the integrated RGB lighting in a distinctive way, creating a visually captivating effect inside your PC build. Additionally, this glass is more resistant to alcohol-based cleaning agents, ensuring long-term clarity and durability.
High-Performance Cooling Design
The DeltaMate GPU Block Astral – ROG 5080 maintains the proven design principles of the DeltaMate series. Key features include:
- Ultra-high-performance microfins with a 0.2 mm structure width for maximum heat dissipation
- Full-metal construction paired with an RGB-illuminated viewing window
- Targeted cooling for all VRAM and VRM components
- Configurable terminal options: Through Terminal (4-port) or Direct Terminal (2-port), both made from durable brass

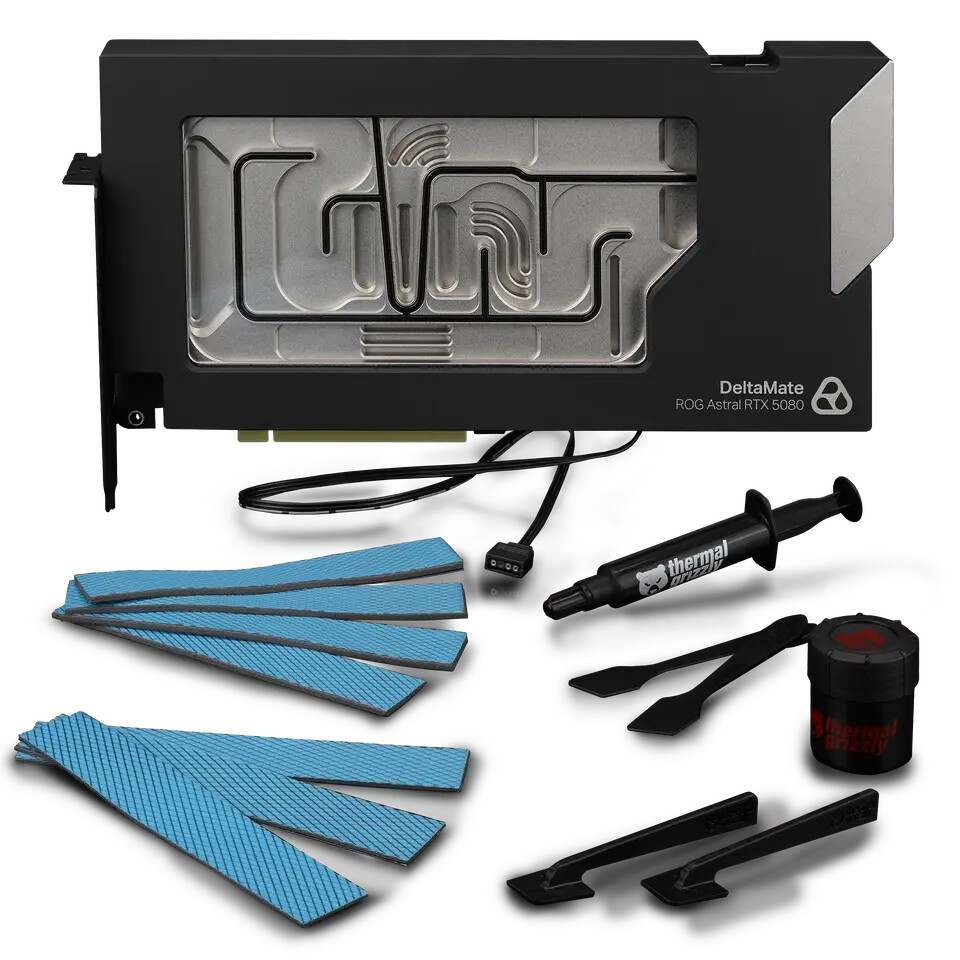

- Comprehensive installation kit with thermal paste, thermal pads, and putty included
Compatibility with ROG Astral RTX 5080 Series
The DeltaMate GPU Block Astral – ROG 5080 is engineered for seamless compatibility with a range of ASUS ROG Astral GeForce RTX 5080 graphics cards, including:
- ROG Astral GeForce RTX 5080 16 GB GDDR7 OC Edition
- ROG Astral GeForce RTX 5080 16 GB GDDR7
- ROG Astral GeForce RTX 5080 16 GB GDDR7 WHITE OC Edition
- ROG Astral GeForce RTX 5080 16 GB GDDR7 WHITE Edition
- ROG Astral GeForce RTX 5080 Dhahab CORE OC Edition
- ROG Astral GeForce RTX 5080 16 GB GDDR7 OC DOOM Edition
- ROG Astral GeForce RTX 5080 16 GB GDDR7 OC HATSUNE MIKU EDITION
Precision Engineering for Optimal Thermal Performance

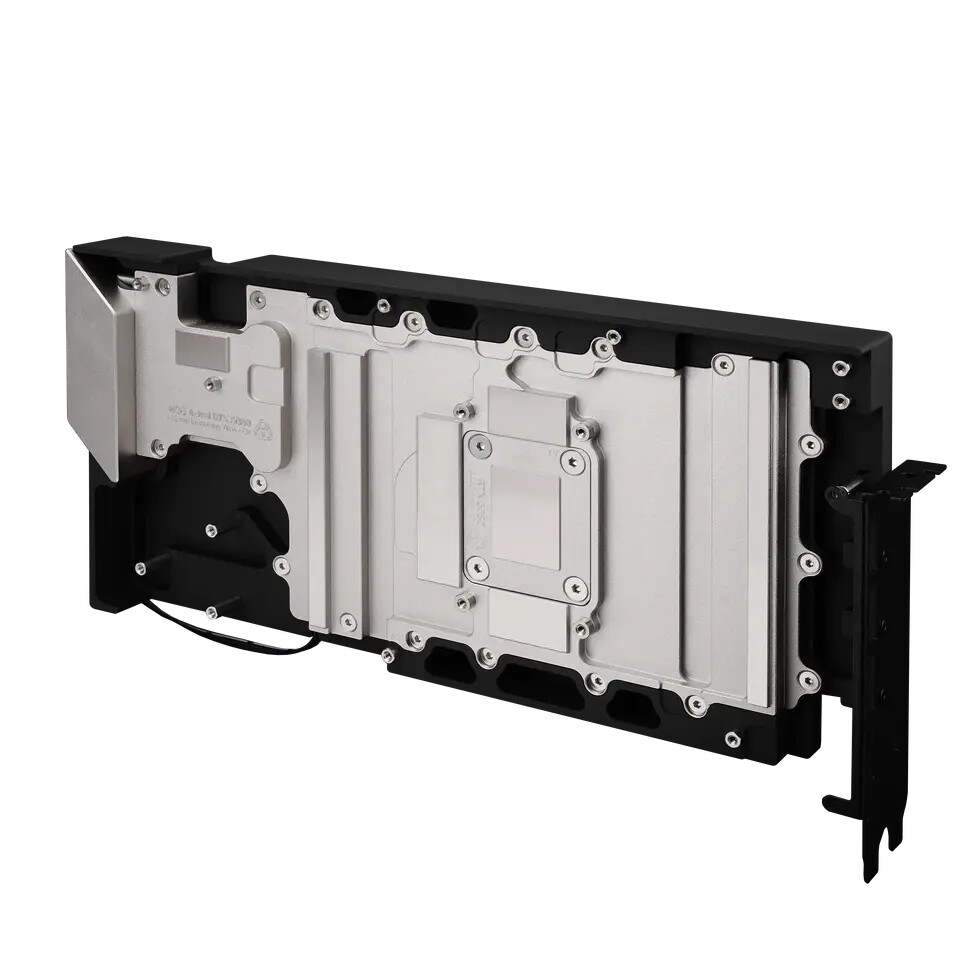

The DeltaMate GPU Block Astral – ROG 5080 achieves outstanding cooling efficiency through its optimized coolant flow and advanced construction. The water block is composed of two main components: a Core-Coldplate dedicated to the GPU and a VRM/VRAM-Coldplate for memory and voltage regulation modules. These elements are securely joined with an aluminum housing and the signature glass viewing window.
The VRM/VRAM-Coldplate, weighing over 900 grams, is meticulously milled from high-grade copper and precision-blasted for a uniform finish. Contact surfaces for VRAM and VRM undergo additional CNC machining to ensure optimal heat transfer. All copper components are nickel-plated in the final production stage for enhanced durability and corrosion resistance.
The Ultra-High-Performance-Coldplate is separately manufactured, beginning with precision blasting and followed by CNC refinement of the GPU contact surface. With a slot width and fin width of 0.2 mm and a fin height of 2.5 mm, the Core-Coldplate offers a substantial surface area of 13,440 mm². Both coldplates are fully CNC-milled, ensuring superior quality and performance compared to skived alternatives.
The DeltaMate GPU Block Astral – ROG 5080 stands out as a premium solution for users demanding top-tier cooling, robust construction, and a visually impressive addition to their custom water-cooled systems.
