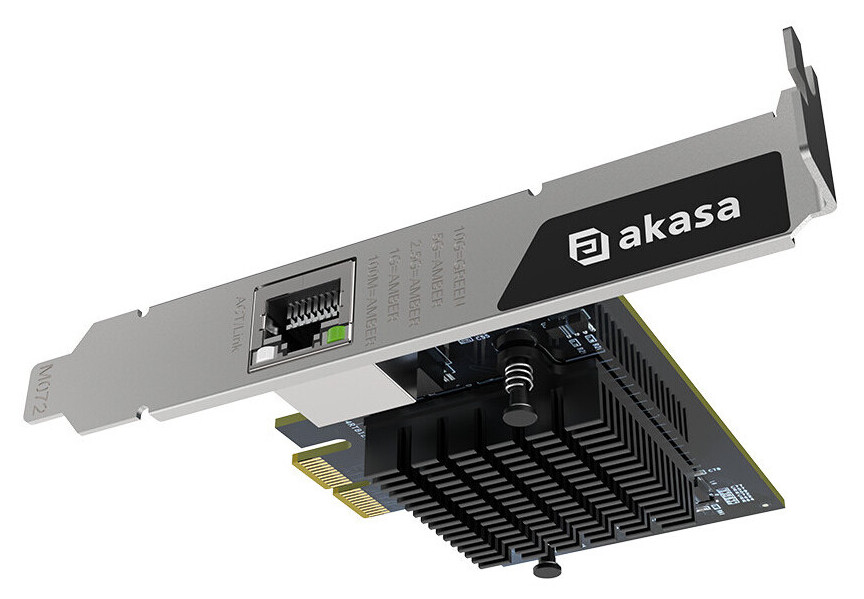

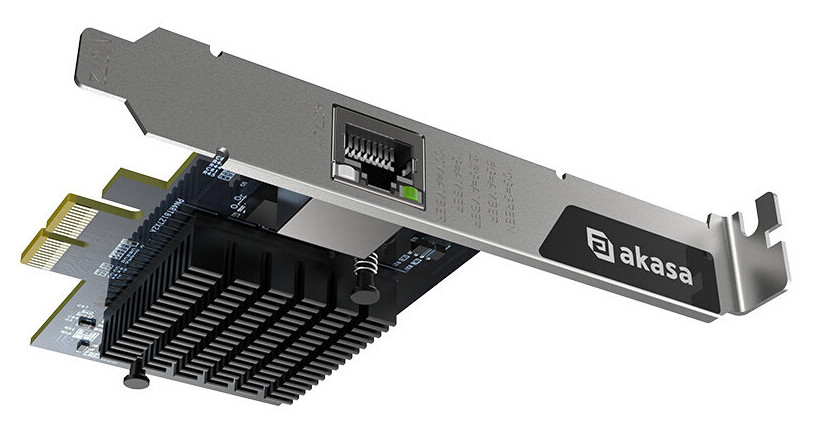

Akasa Unveils High-Performance 10 Gigabit PCIe Network Card for Multi-Gigabit Ethernet Connectivity

Akasa, renowned for its innovative computer hardware and PC accessories, has introduced a new 10 Gigabit PCIe Network Interface Card (NIC) designed to deliver ultra-fast Ethernet connectivity to desktops, workstations, servers, and embedded systems. This advanced network card is powered by the Realtek RTL8127AT chipset and utilizes a PCIe 3.0 x2 interface, ensuring seamless integration and high-speed data transfer across a wide range of computing environments.

Comprehensive Multi-Gigabit Support and Compatibility

The Akasa 10 Gigabit PCIe NIC supports six auto-negotiating speed tiers: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps. This flexibility allows users to optimize network performance based on their specific requirements. The card is compatible with PCIe x2, x4, x8, and x16 slots, making it suitable for a variety of server and workstation configurations.

Engineered to meet industry standards, the card is compliant with IEEE 802.3bz (2.5GBASE-T/5GBASE-T) and IEEE 802.3an (10GBASE-T) protocols. It also features IEEE 802.3az Energy Efficient Ethernet support, which intelligently reduces power consumption during periods of low network activity without compromising connectivity.

Advanced Features for Enhanced Network Efficiency

This 10 Gigabit PCIe network card is equipped with several features aimed at maximizing operational efficiency. Wake-on-LAN (WoL) enables remote power management, while jumbo frame support up to 16K helps reduce CPU overhead during large data transfers. The single RJ45 port is complemented by a green activity LED and a dual-color green/amber link speed LED, providing clear visual indicators for network status and speed.

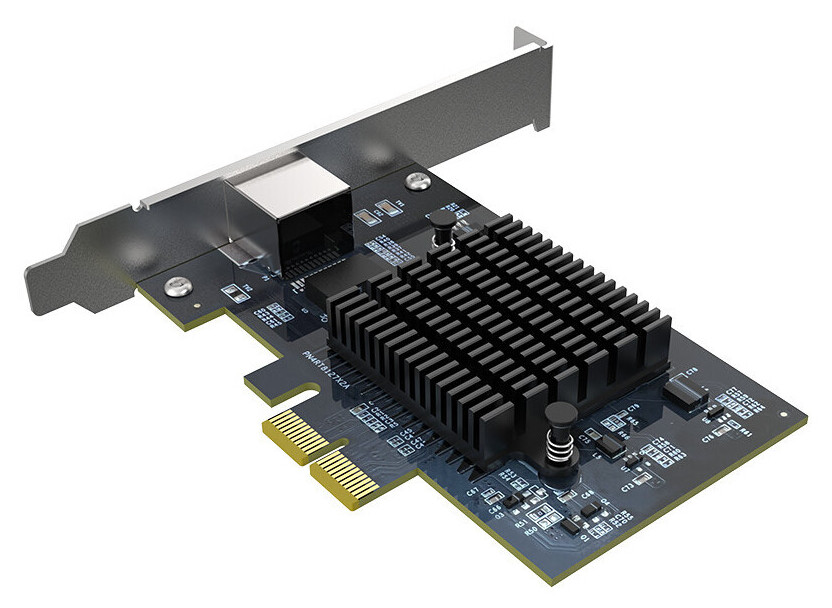

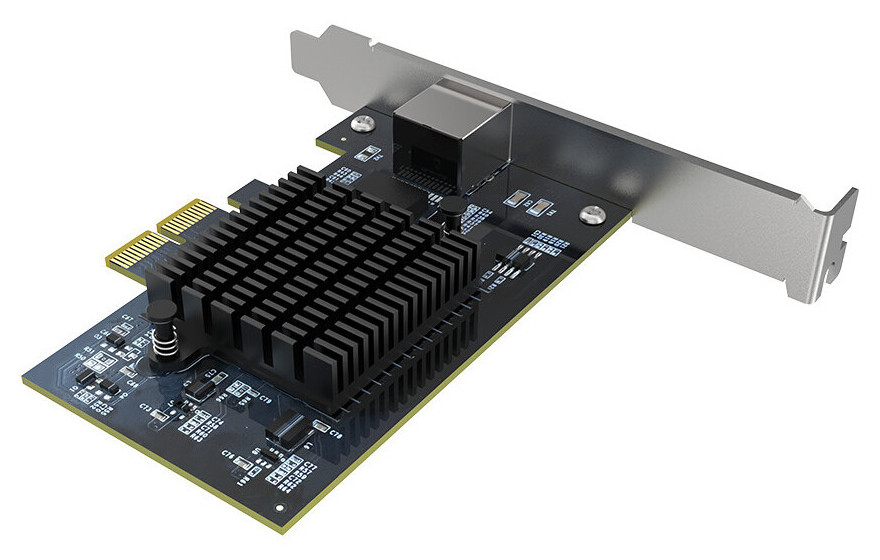

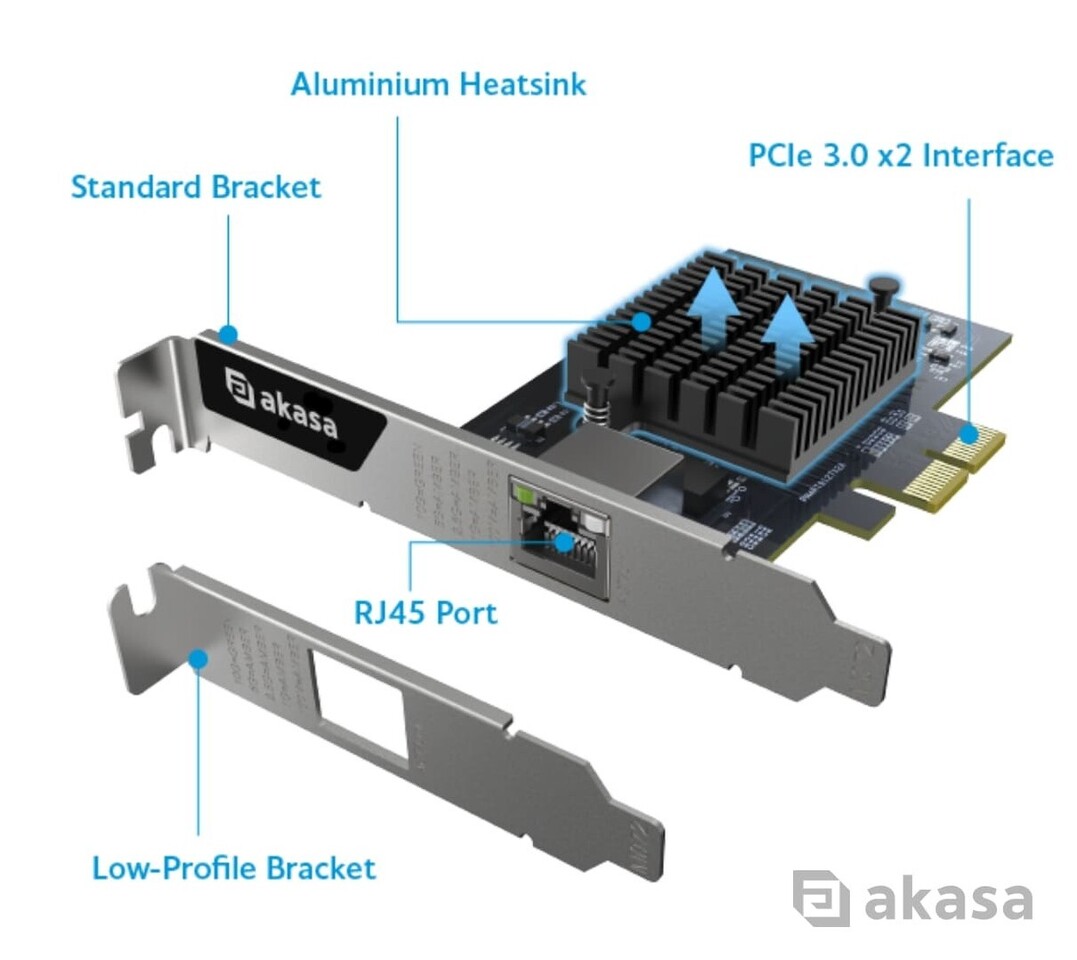

Thermal management is addressed with an integrated aluminium heatsink, ensuring reliable performance even under heavy workloads. Both full-height and low-profile brackets are included, supporting installation in standard ATX, small form-factor (SFF), and rack-mounted enclosures.

Broad Operating System Support

The Akasa 10 Gigabit PCIe NIC offers extensive compatibility with major operating systems, including Windows 10/11, Windows Server 2003/2008/2022, and Linux kernel 3.10 or later. This wide-ranging support ensures flexible deployment across both modern and legacy enterprise environments.

Ideal Applications for High-Speed Networking

Designed for continuous, high-performance network connectivity with efficient power usage, this network card is well-suited for:

  • Desktops and workstations
  • Server and NAS enclosures
  • Embedded systems and communications platforms
  • Industrial computing systems
  • Edge computing and data-intensive deployments

Technical Specifications

  • Application: PCIe 1-Port 10G BASE-T Multi-Gigabit Network Card
  • Chipset: Realtek RTL8127AT
  • Transfer Rate: 10 Gb / 5 Gb / 2.5 Gb / 1 Gb / 100 Mb / 10 Mb Ethernet
  • Ports: RJ45
  • LED Indicators: Green (Activity) x1, Green and Amber Dual Color (Speed) x1
  • Operating Temperature: 0℃–55℃
  • Storage Temperature: -10℃–70℃
  • Bracket: Full-height and low-profile options included
  • OS Compatibility: Windows 10/11, Windows Server 2003/2008/2022, Linux 3.10 or later
  • Product Code: AK-PCCE10-01

Availability and Pricing

The Akasa 10 Gigabit PCIe Network Card is available for order across the UK, Europe, North America, and Asia, with prices starting at £76.00 / €78.80 (pricing may vary by reseller).
