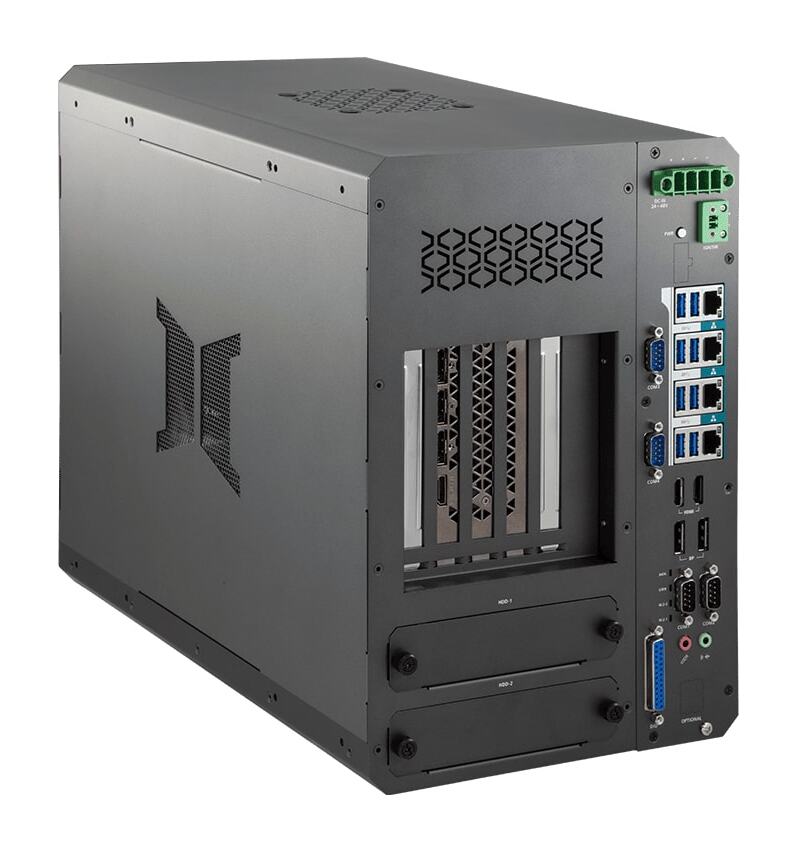

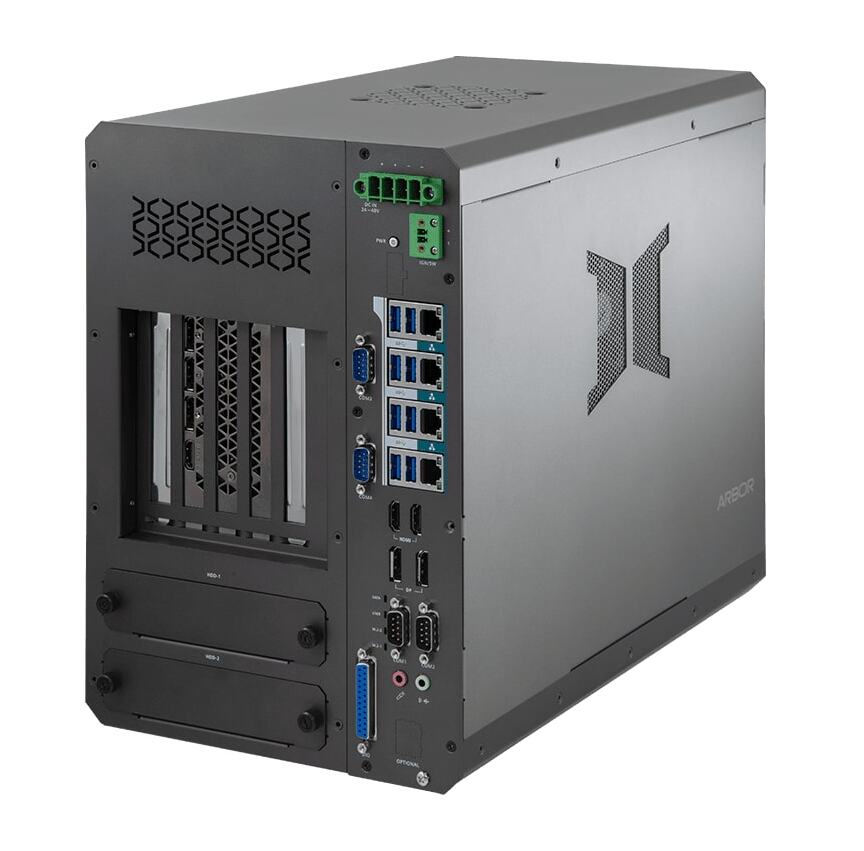

Introducing the ARBOR FPC-9309W-G5: A Rugged Edge AI Platform for Industrial Applications
ARBOR Technology Corp., a recognized leader in industrial IoT and edge AI computing, has unveiled the FPC-9309W-G5, a robust Edge AI platform engineered for high-performance computing at the edge. Powered by Intel Core Ultra Processors (Series 2) and supporting NVIDIA RTX 50 Series GPUs up to 575 W, this platform is purpose-built for AI vision, intelligent transportation systems, and smart manufacturing environments.
Advanced AI Computing for Real-Time Applications
The FPC-9309W-G5 is designed to meet the demands of modern AI workloads, offering real-time AI inference, advanced machine vision processing, and high-speed analytics. With support for the NVIDIA RTX 5090 GPU and Intel Core Ultra processors, it delivers exceptional computational power for intensive edge AI tasks. The system’s optimized thermal and power management ensures stable, reliable operation even under continuous, heavy workloads.
Flexible Expansion and Industrial-Grade Connectivity
Engineered for seamless integration into industrial environments, the FPC-9309W-G5 features four 2.5 GbE LAN ports, multiple PCIe expansion slots, and a variety of RAID storage options. Its comprehensive industrial I/O and front-accessible ports support dependable 24/7 operation, making it ideal for mission-critical edge deployments. The platform’s wide-range DC power input (24~48 V) and configurable ignition power control further enhance its suitability for diverse industrial applications.

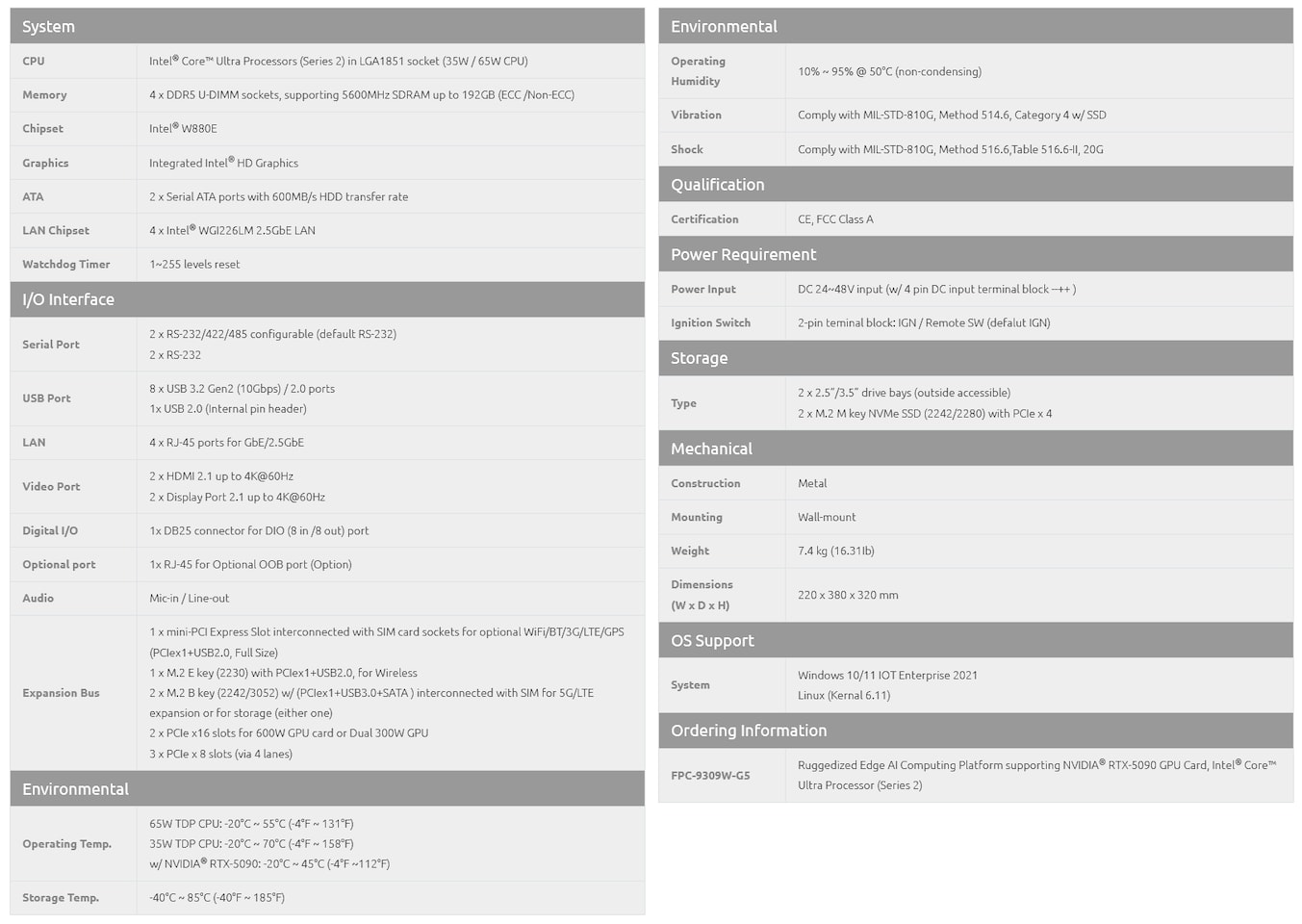

Key Features of the FPC-9309W-G5
- Powered by Intel Core Ultra Processor (Series 2)
- Supports NVIDIA RTX-50 series GPUs up to 575 W (up to 357.6 mm length)
- Wide-range DC power input (24~48 V)
- Dual HDMI and dual DisplayPort outputs for two independent displays
- Power on/off delay and configurable ignition power control
- TPM 2.0 support for enhanced security
- Two externally accessible SATA SSDs and two NVMe SSDs, supporting RAID 0, 1, 5
- Eight USB 3.2 ports with up to 10 Gbps data transfer rates
- Front-accessible I/O for easy maintenance
- PWM fan control for efficient cooling
- M.2 (NGFF) B-Key (2242/3052/2280) socket for storage or 5G/LTE connectivity
- M.2 (NGFF) E-Key (2230) socket for Wi-Fi/Bluetooth expansion
Empowering the Future of Edge AI
The ARBOR FPC-9309W-G5 stands out as a scalable, future-ready platform that enables organizations to accelerate AI adoption at the edge. Its combination of high-performance computing, flexible expansion, and industrial-grade reliability positions it as a leading solution for next-generation edge AI deployments in manufacturing, transportation, and beyond.
